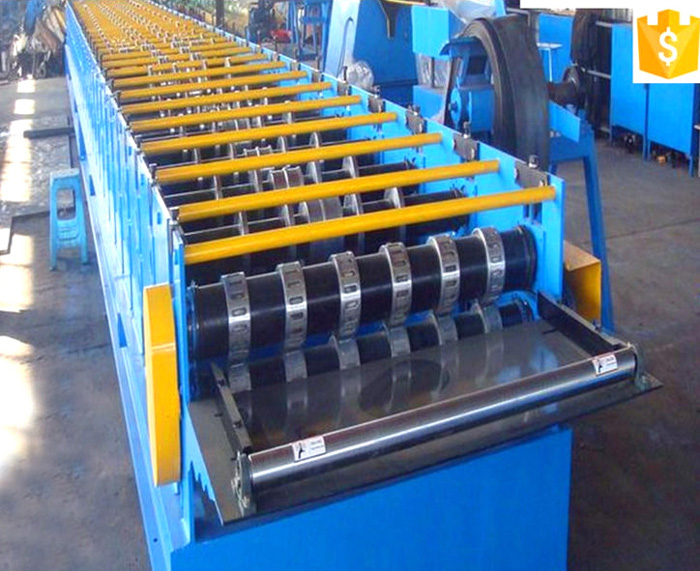

優勢--945樓層板成型機
? 高強度，經久耐用
此設備機架采用國標300/350工字鋼，各組件、標準件一律采用國標產品，絕無空心軸等省料現象。設備運行穩定、操作簡單，能充分保障您的生產進度。

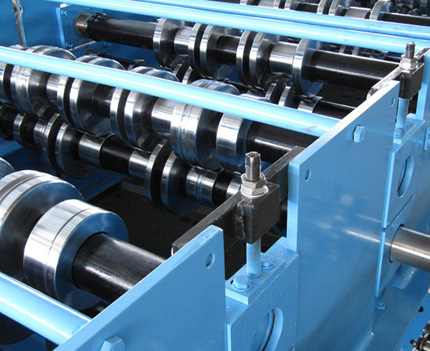

? 加工工序精細復雜
此設備壓制輥輪經數控粗加工、淬火、二次精車、電鍍等多步工序，精度高，跳動小，強度高，成型美觀，無刮傷，無變形，充分保障您的產品質量。
? 交貨快，售后積極
此設備交貨期一般為35天，整機保修一年，終身維護。
 |
 |
 |
 |
規格--945樓層板成型機
|
序號 |
主要組件 |
規格 |
備注 |
|
1 |
軸 |
調質45鋼 |
28道 |
|
2 |
輥輪 |
軸承鋼 |
|
|
3 |
墻板 |
A3鋼(18-20mm) |
|
|
4 |
傳動 |
鏈條或齒輪箱 |
|
|
5 |
切斷 |
液壓剪切 |
|
|
6 |
電機功率 |
30KW |
|
|
7 |
控制系統 |
松下PLC，安川變頻器 |
|
Main technical specification
1. Coil width: 1400mm
2. Material thickness: 0.7mm-1.2mm
3. Main shaft diameter: 100mm
4. Forming speed: 0-15m/min
5. Roll station: 35stations
6. Main power:2*11kw
7. Hydraulic power:7.5 kw
8. Control system: PLC Panasonic
9. Drive: by double chains
Specification of the material
1. Suitable Material: PI/ PPGI
2. Width of the raw material: 1000mm
3. Thickness: 0.8mm-1.5mm

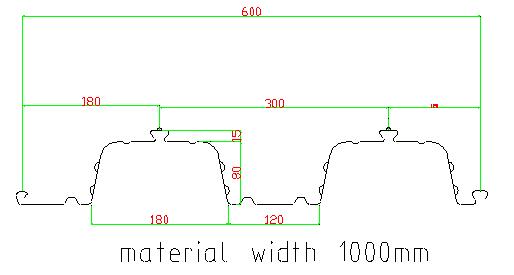

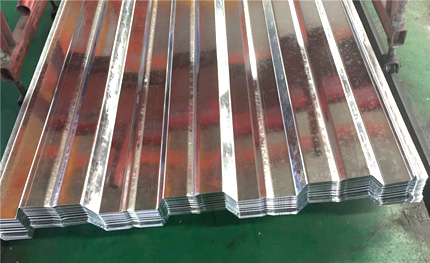

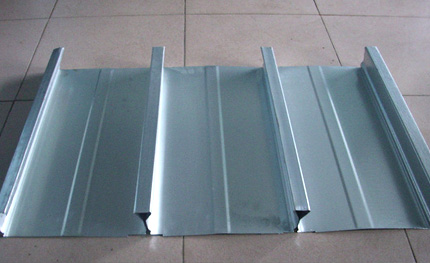

Profile drawing

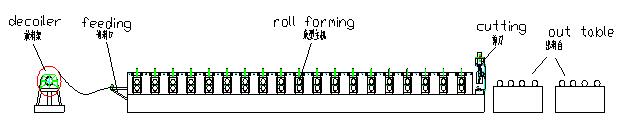

The Chart of Process Flow
Decoiler→ Feeding→ roll forming→ post cutting →out table
Machine Detailed Parameters
|
1 |
Coil width |
1000mm |
|
2 |
Rolling Speed |
0-15m/min(not include cutting time) |
|
3 |
Rolling Thickness |
0.8-1.5mm |
|
4 |
Control System |
PLC (Panasonic) as list in the note |
|
5 |
Un Coiler |
5T manual de-coiler |
|
6 |
Roller Stations |
34 stations |
|
7 |
Roller Material |
45# forge steel surface with chrome |
|
8 |
Shaft Material and DIA |
￠90mm, material is 45# forge steel |
|
9 |
Maim Motor Power |
22kwx2 |
|
10 |
Hydraulic Station Power |
7.5kw |
|
11 |
Hydraulic Pressure |
16Mpa adjustable |
|
12 |

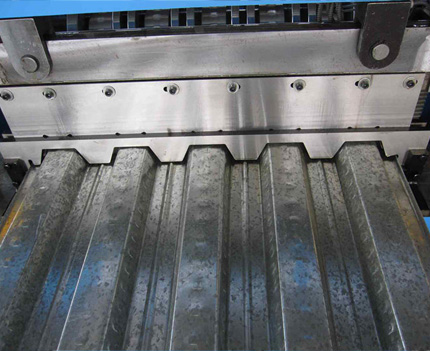

Post cutting system |
Machine adopts hydraulic cutting system |
|
13 |
Material Of Cutting |
Cr12, 58-62 HRC hardness |
|
14 |
Structure Of The Stations |
Wall panel |
|
15 |
Electric Source |
380V, 50HZ,3 phase According to customer’s require |
|
16 |
Way Of Drive |
By chain |
