Main specification
1. Suitable Material: Colored Steel plate, Galvanized steel
2. Width of the raw material: based on profile drawing
3. Thickness: 0.5-0.7mm
 |
 |

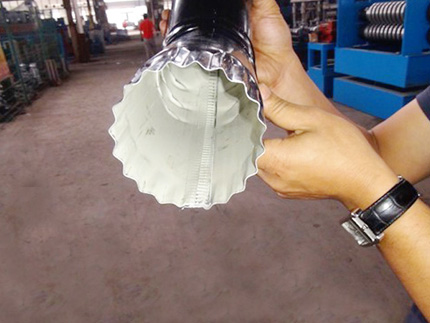

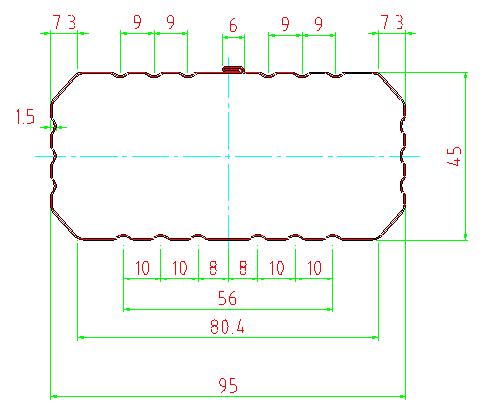

Profile drawing

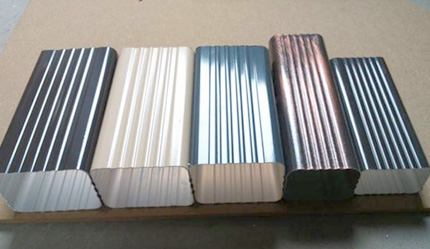

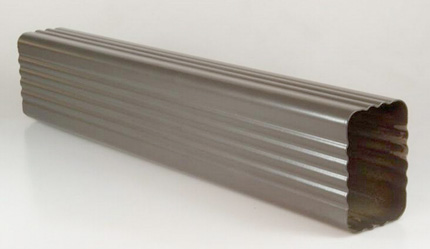

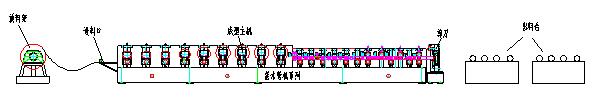

The Chart of Process Flow
Manual Uncoiler—Roll Forming—Cutting—out table
Machine Detailed Parameters
|
1 |
Coil width |
According to the final profile |
|
2 |
Rolling Speed |
0-15m/min |
|
3 |
Rolling Thickness |
0.5-0.7mm |
|
4 |
Control System |
PLC (Panasonic) as list in the note |
|
5 |
Un Coiler |
3T manual de-coiler |
|
6 |
Roller Stations |
20 stations |
|
7 |
Roller Material |
ASTM1045 chrome plated surface with chrome |
|
8 |
Shaft Material and DIA |
￠65mm, material:45# with quenching and tempering |
|
9 |
Post cutting |
Machine adopts hydraulic cutting system |
|
10 |
Material Of Cutting |
Cr12, 58-62 HRC hardness |
|
1 |
Maim Motor Power |
4kw |
|
12 |
Hydraulic Station Power |
5.5kw |
|
13 |
Hydraulic Pressure |
12-16Mpa adjustable |
|
14 |
Structure Of The Stations |
Wall panel |
|
15 |
Bending machine |
2.2kw, max bend angle: 90° |
